Auxiliary Light Controller Box & Remote (Bluetooth)

Bluetooth Lighting Controller Box & Remote

(Battery not included)

This listing is for a multi-function bluetooth controller and remote.

The remote "switch box" is mounted on the dash and sends a bluetooth signal to the "relay box" switching on the desired accessory.

The remote "switch box" can be powered using batteries (not included) for ultimate freedom of mounting or can be wired using the supplied cable to the relay box

The "relay box" can also be controlled using a mobile app - ideal when you are camping you can turn on / off work lamps to illuminate the camping area from your tent.

With this item you can control your automotive exterior lighting - spot lights/lightbar, warning beacon lights, work lights etc.

This kit includes:

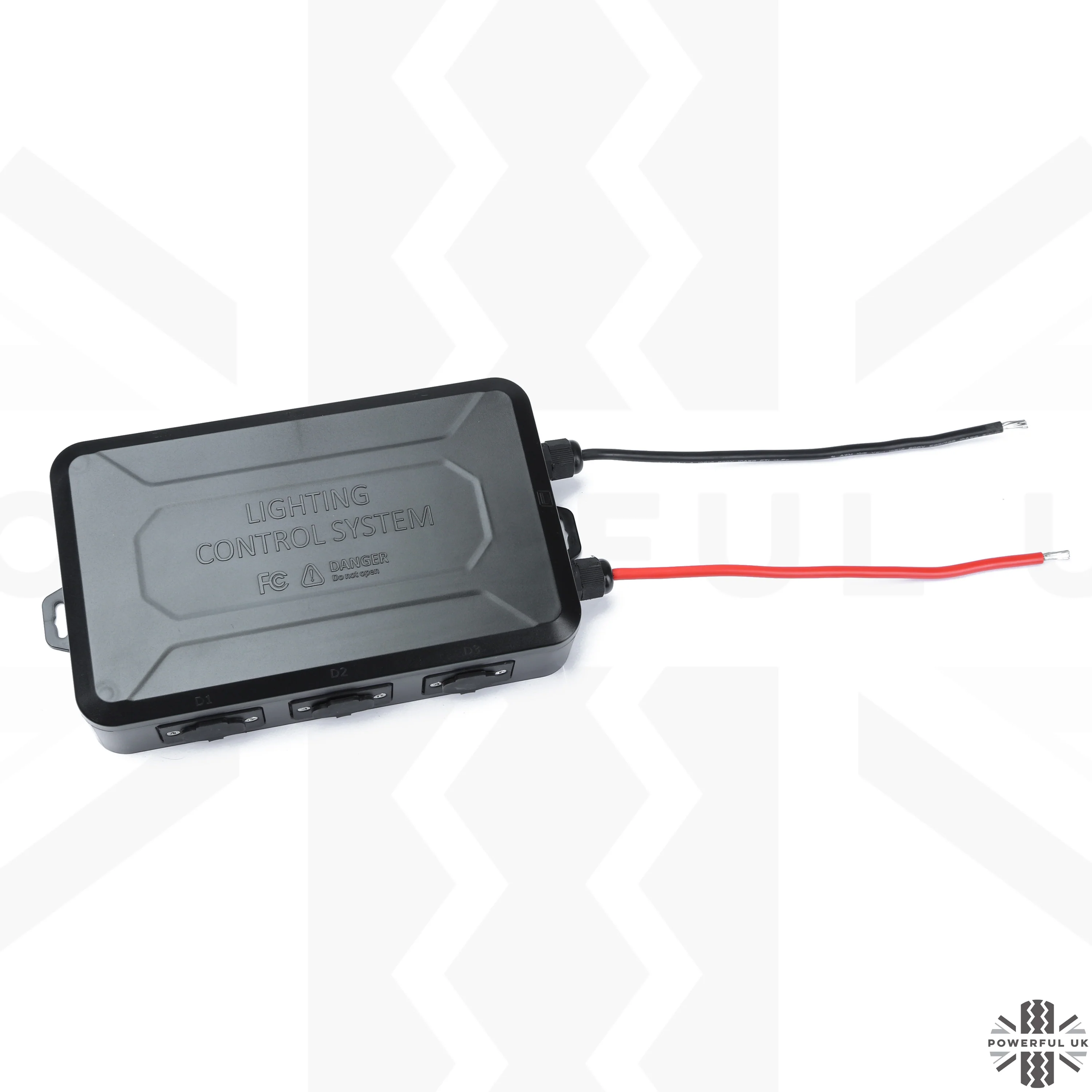

• Controller box with 6 individually controllable outputs
• Remote control (battery NOT included - you will require a 23A type battery)
• Wiring

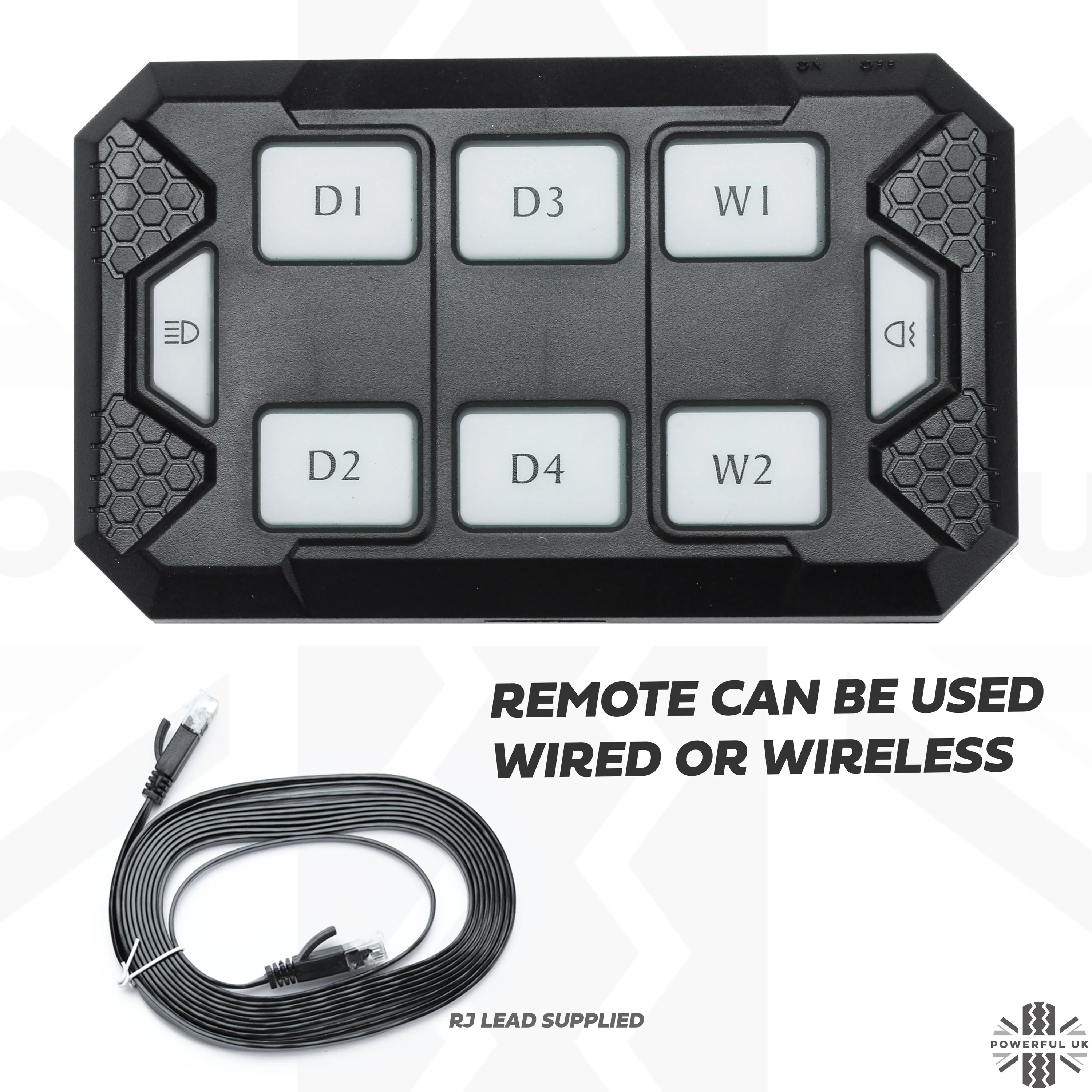

There is an RJ lead supplied so you can use the remote control wired if preferred.

It is also possible to pair your smartphone to the controller box to control the lighting (you will need to download the DarkBOX app).

Tech specs:

• Input: 20A/600W max
• Voltage: 10 -30V DC

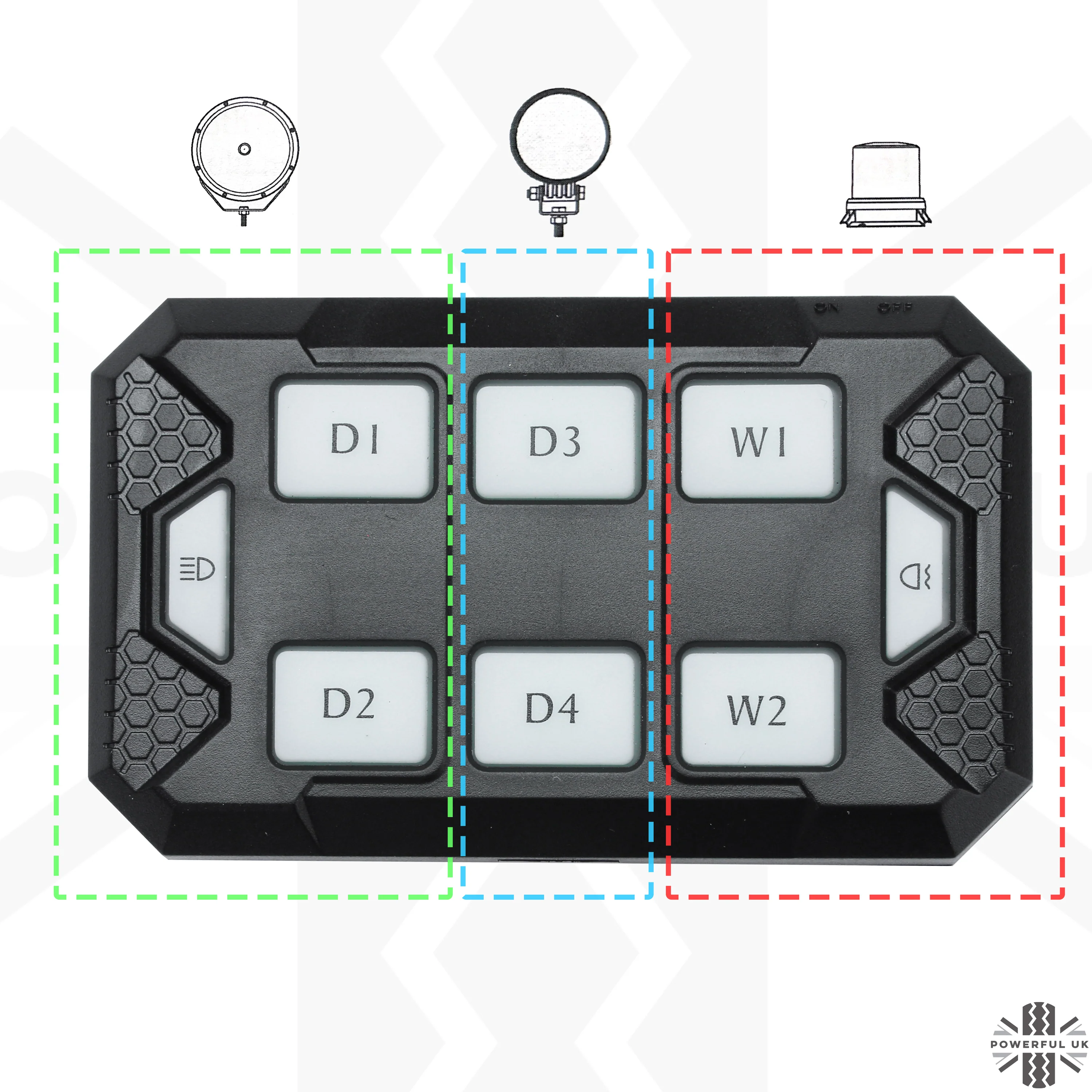

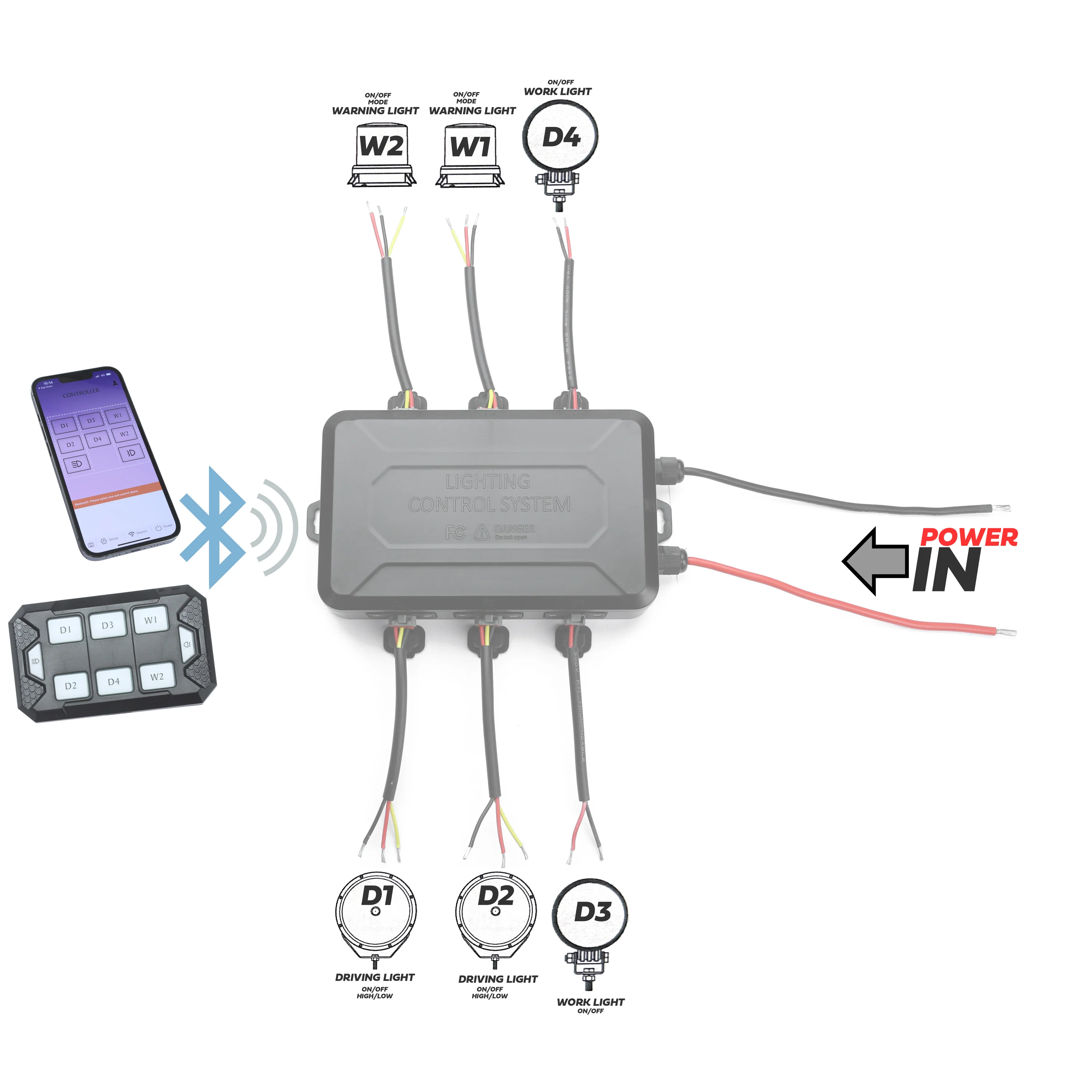

The 6 channels are split into 3 groups:

• Driving Lights - 2 channels, which have on/off and high/low beam control (3 wire output)
• Work Lights - 2 channels, which have on/off control only (2 wire output)
• Warning Lights - 2 channels, which have on/off and mode control (3 wire output)

The controller box is IP67 rated and has overload protection.

Fitting Details

Note: You will require a 23A battery for the remote controller, battery is not included with this kit.

Please see our video below

Bluetooth Auxiliary Lamp / Light Controller - Unboxing / Demo / Setup - YouTube

Video will open in a new window
